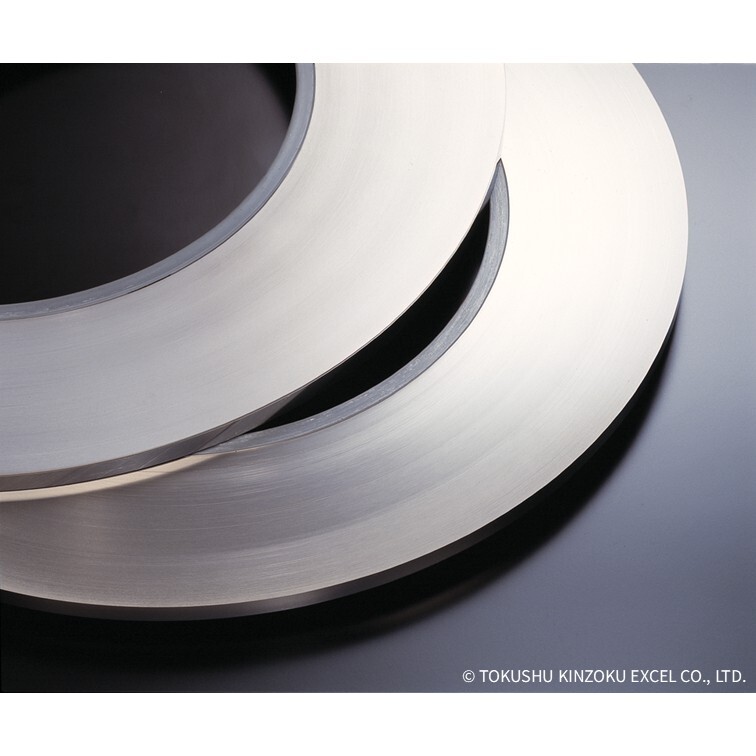

TNM-1 | Non-Magnetic Stainless Steel

Get a Price/Quote

MOQ : 100 Kilograms

TNM-1 | Non-Magnetic Stainless Steel Specification

Temper
BA (Bright Annealed), 2B (Skin Passed), As Rolled (Hard)

Width
3.0 to 300 Millimeter (mm)

Chemical Composition
Refer to the image

Grade
TNM-1

Thickness
0.010 to 2.0 Millimeter (mm)

Shape
Coil, Sheet

Surface
Bright, Dull

Application
Other

TNM-1 | Non-Magnetic Stainless Steel Trade Information

Minimum Order Quantity
100 Kilograms

Payment Terms
Telegraphic Transfer (T/T)

Packaging Details
Our Standard Packing for Export

Main Export Market(s)
Asia, North America, South America, Eastern Europe, Western Europe, Middle East

About TNM-1 | Non-Magnetic Stainless Steel

Grade	TNM-1
Shape	Coil, Sheet
Thickness	0.010-2.0(Strip, Sheet) Millimeter (mm)
Width	3.0-300(Strip, Sheet) Millimeter (mm)
Length	Strip or Sheet(Length less than 2,000mm)
Technique	Cold Rolled
Temper	BA(Bright Annealed), 2B(Skin passed), As Rolled(Hard)
Surface	Bright, Dull
Application	Camera Modules, Communication Equipment Components, Medical Devices, Indwelling Needles, Motor Components Due to its non-magnetic properties, it is used for applications where magnetism is not desired, such as in electronic components.
Coil I.D.	300, 400, 519mm
Mechanical Properties	Refer to the image
Minimum Order Quantity	100 Kilograms
Country of Origin	Japan
Payment Terms	Telegraphic Transfer (T/T)
Delivery Terms	EXW, FOB, CIF, DAP etc.
Packaging Details	Our Standard Packing for Export
Main Export Market(s)	Asia, Muddle East, North America, South America, Europe etc.

Stainless steel that is not easily magnetized even when a magnetic field is applied is referred to as "Non-magnetic stainless steel." Even in austenitic stainless steels such as SUS304 and SUS316L, which are commonly considered non-magnetic, the permeability increases as the cold working rate increases. In order to use the material in a non-magnetic state, there were issues such as keeping the processing rate low and insufficient strength.

This steel type is specifically designed with adjusted composition to maintain non-magnetism even at extremely high processing rates. With an exceptionally high strength of 500 HV, making it ideal for applications requiring both near-perfect non-magnetism and high springiness. Besides, soft-finished material can also be drawn.

We can also help you select appropriate materials besides TNM-1 in accordance with your issues and actual use.

Product catalogue of TNM-1 is also available, Please feel free to contact us for more information.

TNM-1 Description :

TNM-1 is a specially engineered non-magnetic stainless steel developed to maintain extremely low magnetic permeability even after intensive cold working and forming operations.

Conventional austenitic stainless steels such as SUS304 and SUS316L are generally regarded as non-magnetic; however, their magnetic permeability increases as the degree of cold work rises due to the formation of strain-induced martensite. This can create challenges in applications where strict non-magnetic performance is required.

TNM-1 addresses this limitation through a carefully optimized chemical composition that stabilizes the austenitic structure and suppresses magnetization, even under extremely high processing rates.

In addition to exceptional non-magnetic performance, TNM-1 can achieve hardness levels of approximately 500 HV, making it suitable for applications requiring both high spring properties and near-perfect non-magnetism.

Soft-temper materials are also available, allowing deep drawing and complex forming operations while maintaining excellent non-magnetic characteristics.

Main Features:

Exceptional Non-Magnetic Performance

Maintains extremely low magnetic permeability even after severe cold rolling, stamping, and forming operations.
High Strength and Hardness

Achieves hardness levels up to approximately 500 HV, providing excellent spring characteristics and durability.
Stable Austenitic Structure

Specially designed alloy composition suppresses strain-induced magnetization during processing.
Excellent Formability

Soft-finished material can be deep drawn and formed into complex precision components.
Ideal for Precision Electronics

Suitable for applications where magnetic interference can affect performance or measurement accuracy.
Medical Equipment Applications

Combines corrosion resistance, strength, and non-magnetic performance for demanding medical and electronic products.

TNM-1 is widely used in camera modules, medical devices, indwelling needles, motor components, sensors, and precision electronic assemblies where both high strength and extremely low magnetism are critical requirements.

Product catalogs and detailed technical information are available upon request. Material selection support can also be provided to help identify the most suitable non-magnetic alloy for specific application requirements.

Superior Non-Magnetic Properties

TNM-1TM stainless steel stands out for its unique non-magnetic nature, ensuring suitability for applications where magnetic interference must be avoided. This makes it particularly useful in electronics, medical devices, and precision instruments that demand consistent non-magnetic performance.

Versatile Surface and Temper Options

Choose from multiple surface finishes-including bright, dull, and annealed-and various tempers such as BA (Bright Annealed), 2B (Skin Passed), and As Rolled (Hard). These selections allow you to tailor TNM-1TM sheets and coils to your specific functional and aesthetic requirements.

Precision Engineering from Japan

As an exporter, manufacturer, and supplier based in Japan, our TNM-1TM stainless steel is processed to the highest standards. Precision in manufacturing ensures consistent dimensions and quality, providing you with the reliability needed for complex engineering projects.

FAQ's of TNM-1a | Non-Magnetic Stainless Steel:

Q: What are the main benefits of using TNM-1TM non-magnetic stainless steel?

A: TNM-1TM offers excellent non-magnetic properties, high corrosion resistance, durability, and flexibility in dimensions, making it ideal for applications in precision engineering, electronics, and medical industries.

Q: How is TNM-1TM stainless steel typically processed or supplied?

A: TNM-1TM is supplied as coils or sheets with thicknesses ranging from 0.010 to 2.0 mm and widths between 3.0 and 300 mm. It can be processed in various finishes like Bright Annealed (BA), 2B Skin Passed, dull, and as rolled (hard) conditions to suit different needs.

Q: When should I use BA (Bright Annealed) or 2B (Skin Passed) temper for TNM-1TM?

A: BA temper is recommended when a bright, reflective finish is needed for aesthetic or functional reasons. 2B Skin Passed is suitable for a smoother, matte surface, often preferred where appearance and easy cleaning are required.

Q: Where can TNM-1TM stainless steel be used effectively?

A: TNM-1TM is highly effective in industries where non-magnetic characteristics are crucial, such as in medical equipment, sensor housings, electronic components, and any application sensitive to magnetic interference.

Q: What is the typical process for ordering TNM-1TM stainless steel from Japan?

A: Customers can contact the exporter, manufacturer, or supplier in Japan with their specific requirements for dimensions, surface finish, and temper. After confirming details and chemical composition, the order is processed and shipped according to international standards.

Q: How does the chemical composition of TNM-1TM enhance its performance?

A: The carefully engineered chemical composition of TNM-1TM ensures its non-magnetic character and superior corrosion resistance, contributing to long-lasting performance in demanding environments.
