nanoSUS 301 | Ultrafine Grain Stainless Steel

nanoSUS 301 | Ultrafine Grain Stainless Steel About

Grade	nanoSUS 301
Shapes	Coil, Sheet
Thickness	0.010 to 0.20mm (Strip, Sheet) *Contact sales if you need 0.20 mm to 0.60 mm
Width	3.0 to 300mm (Strip, Sheet)
Length	Strip or Sheet (Length less than 2,000mm)
Technique	Cold Rolled
Temper	Ultrafine-grained(adjustable hardness)
Surface Finish	Bright
Examples of Applications	Injection Needles, Vibration Motors/Haptics, Micro Oumps, Printer Components, Tact Switches/Membrane Switches, Injectors
Coil I.D.	300, 400, 500mm

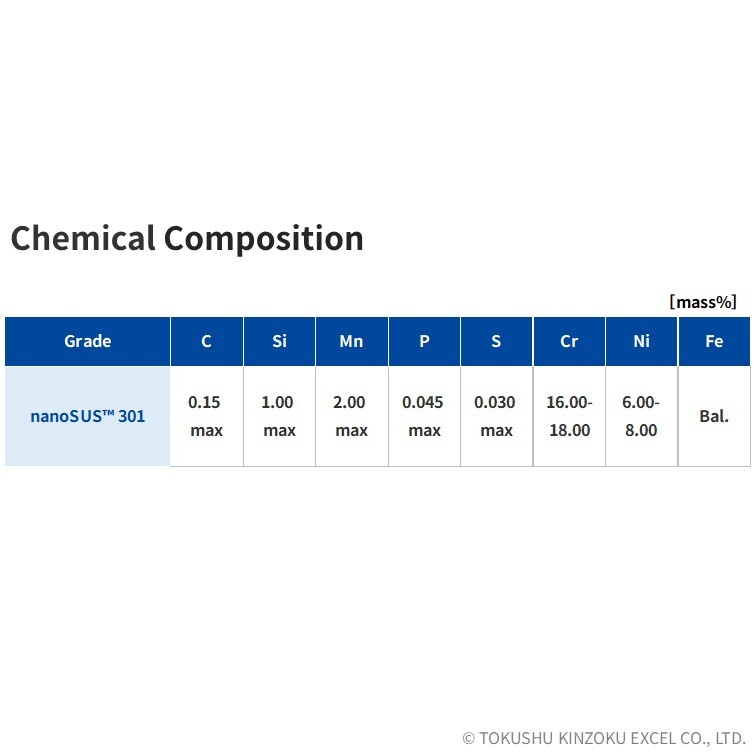

Chemical Composition	Refer to the image
Density	7.93 g/cm3
Specific Heat	502 J/(kg K)
Electrical Resistivity	72 micro-ohm meter
Young's Modulus	193 GPa
Thermal Expansion	16.9 x 10-6/K (0-100oC)
Thermal Conductivity	16.3 W/(m K)
Melting Range	1380-1420 oC
Minimum Order Quantity	100 Kilograms
Country of Origin	Japan
Payment Terms	Telegraphic Transfer (T/T)
Delivery Terms	EXW, FOB, CIF, DAP etc.
Packing	Our Standard Packing for Export
Export Markets	Asia, Middle East, North America, South America, Europe etc.

nanoSUS 301 Description :

nanoSUS is a stainless steel that has ultrafine grained (UFG) microstructures with average grain sizes smaller than 1 m. Compared to normal material, various property improvements can be expected, such as strength, fatigue properties, and workability by controlling the microstructure.
nanoSUS 301 uses SUS301 raw material, which enables high-strength finish such as EH, and nanoSUS (UFG) is expected to improve fatigue properties and spring properties compared to normal grain size.
We can produce different types of mechanical properties and grain sizes according to your requests and required characteristics. Please contact us for details.

Exceptional Precision for Micro Applications

nanoSUS 301's ultrafine grain structure and bright surface deliver a remarkable combination of strength and flexibility, making it ideal for microfabrication. Its precise thickness and width tolerances open up possibilities for use in miniature devices requiring consistent, reliable performance.

Customizable Hardness for Versatile Demands

The adjustable temper of nanoSUS 301 allows manufacturers to tailor mechanical properties to specific industry needs. From flexible components in electronic contacts to rigid elements required in injectors or medical needles, this material adapts for the optimal balance of strength and resilience.

FAQ's of nanoSUS 301 | Ultrafine Grain Stainless Steel:

Q: How is nanoSUS 301 stainless steel typically processed or formed?

A: nanoSUS 301 can be processed using standard cold rolling and precision slitting techniques to achieve its specified thickness and width. Its ultrafine-grained microstructure supports excellent formability, making it suitable for intricate shapes essential in micro and electronic components.

Q: What are the main benefits of choosing nanoSUS 301 for precision applications?

A: nanoSUS 301 offers a unique combination of adjustable hardness, high ductility, and strong corrosion resistance. These qualities ensure longevity and reliability in demanding environments, particularly for micro pumps, haptic motors, and injection needles.

Q: When should manufacturers opt for ultrafine grain stainless steel like nanoSUS 301?

A: Ultrafine grain stainless steel is preferred when applications require enhanced mechanical strength, consistent microstructure, and excellent surface finish at very thin dimensions. It is particularly advantageous for the precision and high-performance needs of modern electronics and medical devices.

Q: Where is nanoSUS 301 commonly used?

A: nanoSUS 301 is widely used in applications such as injection needles, tact and membrane switches, haptic/vibration motors, printer components, micro pumps, and injectors, especially where miniaturization and precision are crucial.

Q: How can the hardness of nanoSUS 301 be adjusted for different applications?

A: The temper of nanoSUS 301 can be fine-tuned during manufacturing by applying specific cold working processes, enabling the hardness to be customized for flexible, spring-like parts or more rigid, load-bearing components.

Q: What shapes and forms are available for nanoSUS 301 stainless steel?

A: nanoSUS 301 is supplied in coil, strip, and sheet forms, which allows for flexible processing and incorporation into a wide range of component designs in the electronics and medical industry.
