nanoMAG | High-Strength and Soft Magnetic Stainless Steel

Send Inquiry

Request To Call Back

nanoMAG | High-Strength and Soft Magnetic Stainless Steel

Name: nanoMAG | High-Strength and Soft Magnetic Stainless Steel
Brand: TOKUSHU KINZOKU EXCEL CO., LTD.

Get a Price/Quote

MOQ : 100 Kilograms

nanoMAG | High-Strength and Soft Magnetic Stainless Steel Specification

Width
Under 250 Millimeter (mm)

Temper
As Rolled (Hard)

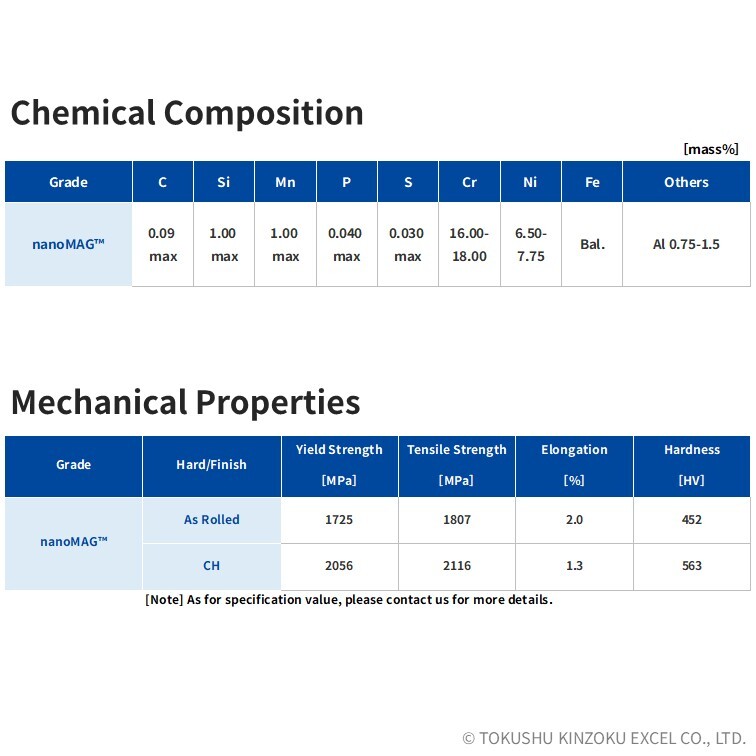

Chemical Composition
Refer to the image

Grade
nanoMAG

Thickness
0.020 to 0.12(Strip, Sheet) Millimeter (mm)

Surface
Bright

Application
Other

Shape
Coil, Sheet

Length
Strip or Sheet(Length less than 2,000mm)

Electrical Resistivity
79 cm

Young's Modulus
200 GPa

Mechanical Properties
Refer to the image

Magnetism
Soft Magnetism

Chemical Composition
Refer to the image

Thermal Conductivity
R 16 W/(mK)

Refer to the image
7.81 g/cm

Thermal Expansion
15.310-6/K0100

Melting Range
1414-1447

nanoMAG | High-Strength and Soft Magnetic Stainless Steel Trade Information

Minimum Order Quantity
100 Kilograms

Packaging Details
Our Standard Packing for Export

nanoMAG | High-Strength and Soft Magnetic Stainless Steel About

Grade	nanoMAG
Shapes	Coil, Sheet
Thickness	0.020 to 0.12mm (Strip, Sheet)
Width	Under 250mm (Strip, Sheet)
Length	Strip or Sheet (Length less than 2,000mm)
Technique	Cold Rolled
Temper	As Rolled(Hard)
Surface Finish	Bright
Examples of Applications	Rotor Cores, Motor Cores, Magnetic Shields
Coil I.D.	300, 400, 500mm
Chemical Composition	Refer to the image
Mechanical Properties	Refer to the image
Density	7.81 g/cm³
Specific Heat	420 J/(kg K)
Electrical Resistivity	79 micro-ohm meter
Young's Modulus	200 GPa
Thermal Expansion	15.3 x 10^-6/K (0-100^oC)
Thermal Conductivity	Finish R: 16 W/(m K)
Melting Range	1414-1447 ^oC
Magnetism	Soft Magnetism
Minimum Order Quantity	100 Kilograms
Country of Origin	Japan
Payment Terms	Telegraphic Transfer (T/T)
Delivery Terms	EXW, FOB, CIF, DAP etc.
Packing	Our Standard Packing for Export
Export Markets	Asia, Middle East, North America, South America, Europe etc.

nanoMAG Description :

nanoMAGa stainless steel combines "extremely high strength" and "excellent soft magnetic properties" through our proprietary grain size refining technology. It is five times stronger than electromagnetic soft iron, so it can also be used for applications such as rotor cores, which are subjected to strong centrifugal force due to high-speed rotation.
Main features of nanoMAG:
(1)Extremely High Strength
Tensile Strength(TS)2000Mpa class(Equivalent or superior to SUS301-EH)

(2)Excellent Soft Magnetic Properties
Maximum flux density 1.5T(Equivalent to ferritic stainless steels)

(3)Good Corrosion Resistance
Equivalent or superior to ferritic stainless steels.

Main features of nanoMAG

Extremely High Strength
Tensile Strength 2000Mpa class(Equivalent or superior to SUS301-EH)
Excellent Soft Magnetic Properties:
Maximum flux density 1.5T(Equivalent to ferritic stainless steels)
Good Corrosion Resistance
Equivalent or superior to ferritic stainless steels.

Superior Magnetic Performance

nanoMAG stainless steel offers exceptional magnetic softness, making it highly effective for applications like rotor and motor cores. Its advanced metallurgical design ensures high permeability and low coercivity, maximizing energy efficiency in electromechanical devices. The bright surface finish further enhances both function and appearance infinal assemblies.

Precision Forming and Versatile Sizes
Supplied in precise coil and sheet formats, nanoMAG is available in widths below 250 mm and thicknesses from 0.020 to0.12 mm. This dimensional flexibility allows seamless integration into tightly engineered components, supporting exacting tolerances required in modern magnetic shielding and core solutions.

FAQ's of nanoMAG | High-Strength and Soft Magnetic Stainless Steel:

Q: How is nanoMAG stainless steel typically processed for industrial applications?

A: nanoMAG stainless steel is supplied in an 'As Rolled' (hard) temper, which means it can be further processed through cutting, stamping, or laser machining according to the specifications of rotor cores, motor cores, or magnetic shielding components.

Q: What benefits does nanoMAG offer compared to standard magnetic stainless steels?

A: nanoMAG combines high mechanical strength with excellent soft magnetic properties, ensuring efficient magnetic performance while resisting deformation. Its bright surface and precise tolerances also contribute to durability and ease of handling during manufacturing.

Q: When should I consider using nanoMAG in my products?

A: You should consider nanoMAG when your design calls for materials that require both superior magnetic properties and mechanical strength, such as in high-performance electric motors, generators, or advanced electromagnetic shielding.

Q: Where is nanoMAG manufactured and can it be exported globally?

A: nanoMAG is manufactured in Japan by a specialized exporter, manufacturer, and supplier. The product is available for international shipment, ensuring access to high-quality Japanese materials worldwide.

Q: What is the chemical composition of nanoMAG and where can I find detailed information?

A: The detailed chemical composition of nanoMAG is specified in accompanying technical documentation or images provided by the manufacturer. Please refer to these resources or contact the supplier for complete composition details.

Q: How is nanoMAG used in electromagnetic devices?

A: nanoMAG is primarily utilized for fabricating rotor cores, motor cores, and magnetic shields in electromagnetic devices. Its soft magnetic character and strength allow these components to operate efficiently, with minimal energy loss and high reliability.

Q: What are the main applications of nanoMAG stainless steel?

A: nanoMAG is ideally suited for use in rotor and motor cores, magnetic shields, and similar components where a combination of strong mechanical properties and excellent magnetic performance is required.
