SOLDER | Molten-Solder Clad Metals

SOLDER | Molten-Solder Clad Metals About

Main Added Properties of Composite Metal Material	Solderability
Shapes	Coil
Thickness	Please contact us.
Surface Treatment	Molten-Solder Plated
Coil I.D.	300, 400, 500mm
Minimum Order Quantity	100 Kilograms
Country of Origin	Japan, China
Payment Terms	Telegraphic Transfer (T/T)
Delivery Terms	EXW, FOB, CIF, DAP etc.
Packaging Details	Our Standard Packing for Export
Main Export Market(s)	Asia, Middle East, North America, South America, Europe etc.

SOLDER Description:

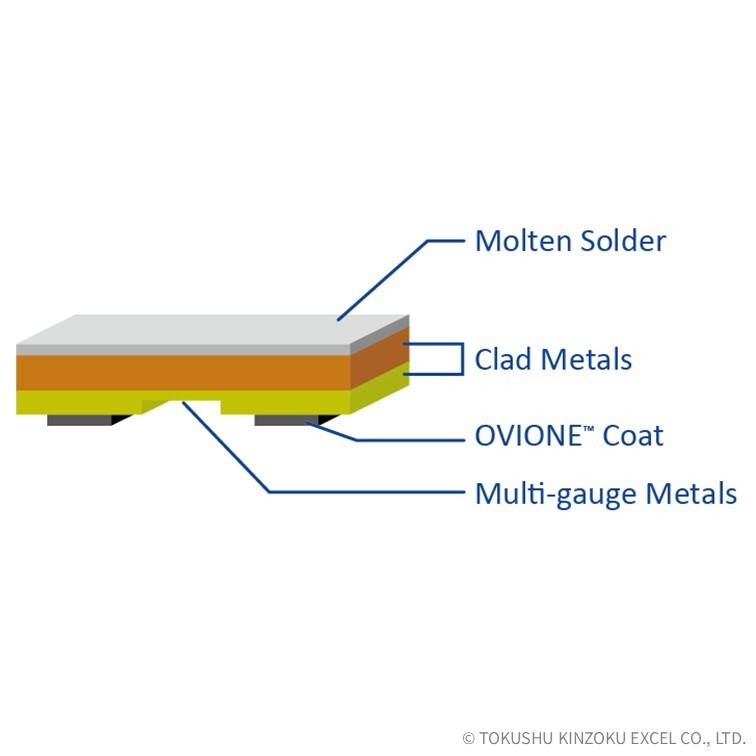

Molten-Solder Plated Metals is a material in which a thin layer of molten solder is pre-coated on the base metal surface prior to stamping.
Strong adhesion can be obtained at the boundary between the base metal and the solder due to bonding by diffusion and chemical bonding by tin.
Molten-Solder Plated Metals is often used as a pre-soldering and has a significant effect on workability and productivity.

The features of our Molten-Solder Plated Metals:
(1) All of our Molten-Solder Plated Metals use lead-free solder in consideration of environmental issues.
(2) Diffusion bonding prevents peeling and no surface preparation is required)
(3) Jig manufacturing method enables inexpensive striped coating.
(4) Thick layer solder can be produced.
(5) Prevents whisker generation.
(6) Can be coated with a wide variety of solder components.
(7) Less solder dust during stamping.

FAQ's of SOLDER | Molten-Solder Plated Metals:

Q: How is the molten-solder plated metal manufactured?

A: These metals are manufactured using a cold-rolled process with an intermediate clad layer and a surface plating of molten solder, further protected by the OVIONE coating. This multi-stage method creates a durable, uniform product with superior corrosion resistance and optimal mechanical properties.

Q: What applications are ideal for SOLDER | Molten-Solder Plated Metals?

A: They are specifically designed for critical components such as vibration motors, haptics, camera modules, FPCs, fuel cells, syringes, indwelling needles, micropumps, stents, bellows, and diaphragms, where high performance and reliability are required.

Q: When should I choose this product over standard stainless steel?

A: Select these plated metals when enhanced corrosion protection, solderability, and precise surface qualities are necessary for your application-especially when used in demanding environments or sensitive electronic or medical assemblies.

Q: Where are these metals typically supplied from?

A: These metals are produced and exported from Japan, leveraging advanced manufacturing standards to meet the rigorous demands of global industries in medical, electronics, and industrial sectors.

Q: What benefits does the OVIONE coat provide?

A: The OVIONE protective layer significantly improves resistance to environmental exposure and mechanical wear, enhancing the durability and lifespan of the molten-solder plated metals under continuous operation and frequent handling.

Q: How can I determine the appropriate thickness and width for my project?

A: Please contact our technical support or sales team with your specifications. The product is available in a range of widths (3.0-300 mm) and customized thicknesses to accommodate various design requirements.
